Player Details Screen

From Players → Manage, click the gear icon and select Manage to open a device’s detail view.

Screen structure​

Top bar (actions menu)​

At the top of the screen you’ll find the main action buttons for operating on the player:

Player actions bar
  • Settings
    • Edit → edit the player information.
    • Copy from → copy the configuration from another player.
  • Scheduling → manage the scheduling of contents.
  • Layout → edit the layout associated with the player.
  • Interactivity → configure interactive events (GPIO, UDP, HTTP, etc.).
  • Device
    • Restart device → remotely reboot the player.
    • Update device → schedule the software update on the player.
  • Preview → show a remote preview of the screen connected to the player.
  • Delete → remove the player from the platform.

Central area​

Left column​

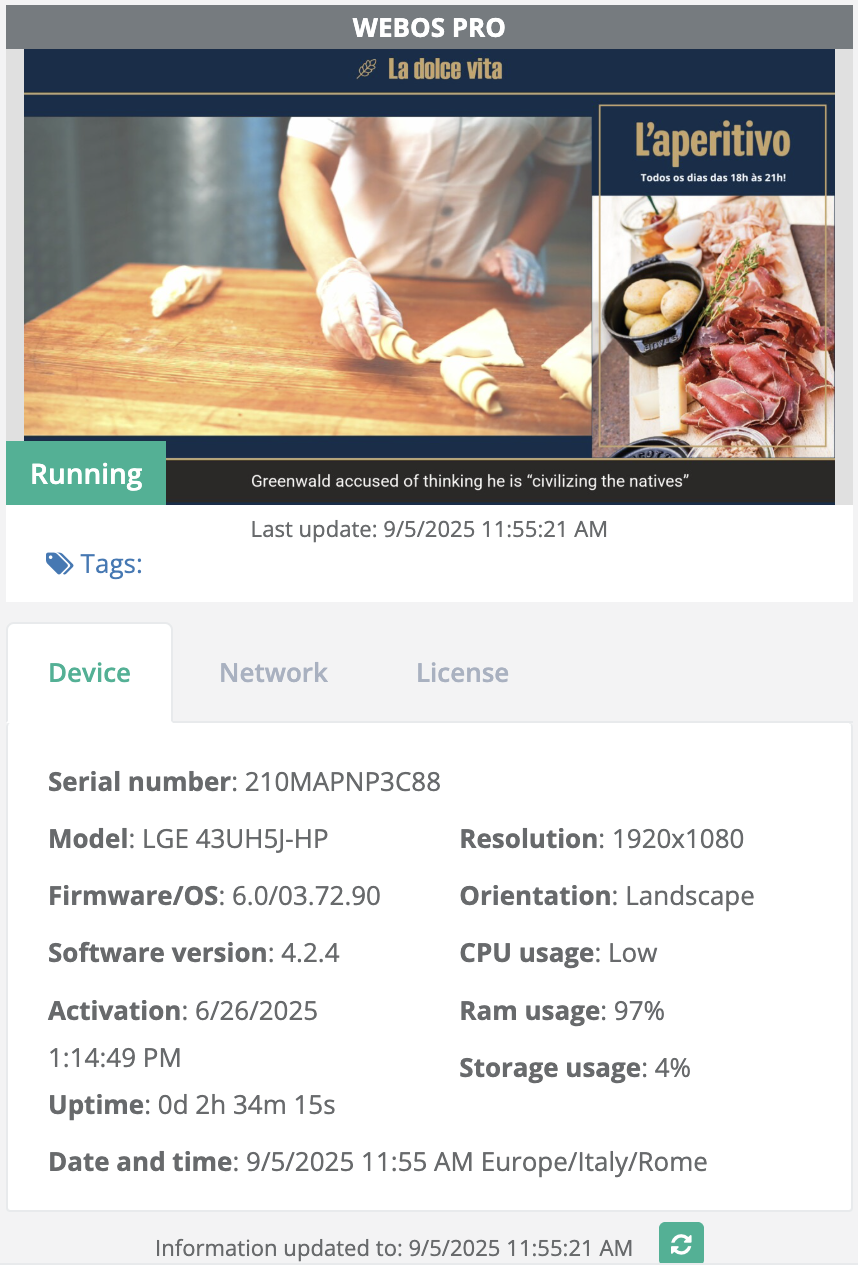

Player detail
  • Screenshot → up-to-date preview of the player with capture time.
  • Tags → list of associated tags.
  • Info tabs:
    • Device → technical data such as serial number, model, firmware/OS, software version, resolution, CPU usage, memory, free space.
    • Network → network parameters (IP address, gateway, DNS, etc.).
    • License → license details (ID, status, type, start and end date).

Right column​

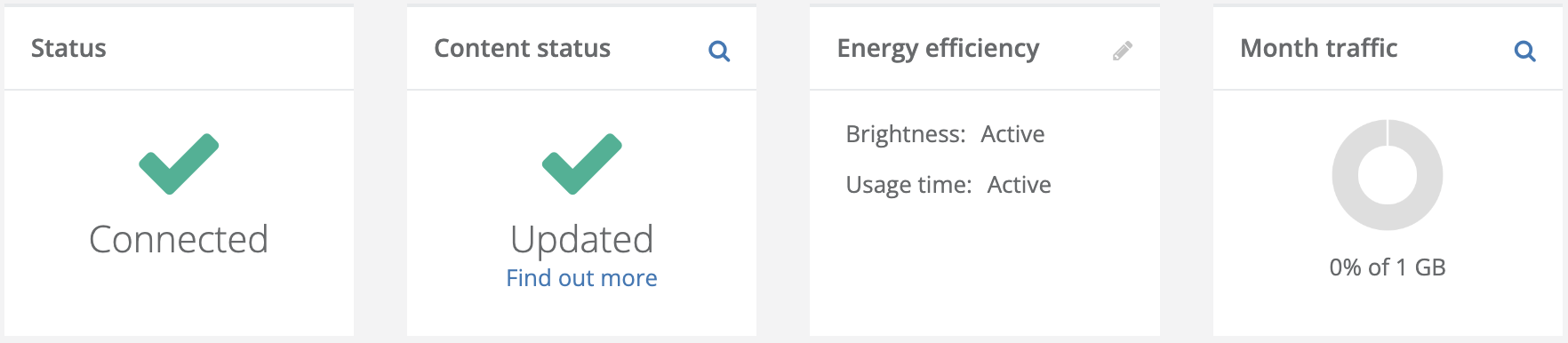

Player widgets
  • Status → shows whether the player is connected and the last detected connection time.
  • Content status → shows whether the contents are synchronized with the platform. Click the magnifying glass icon for more details.
  • Energy efficiency → available only for supported devices. Shows the energy-related features enabled on the selected player.
  • Monthly traffic → chart with bandwidth consumption against the planned threshold (e.g., 0% of 1 GB). Click the magnifying glass icon for more details.

Channel view​

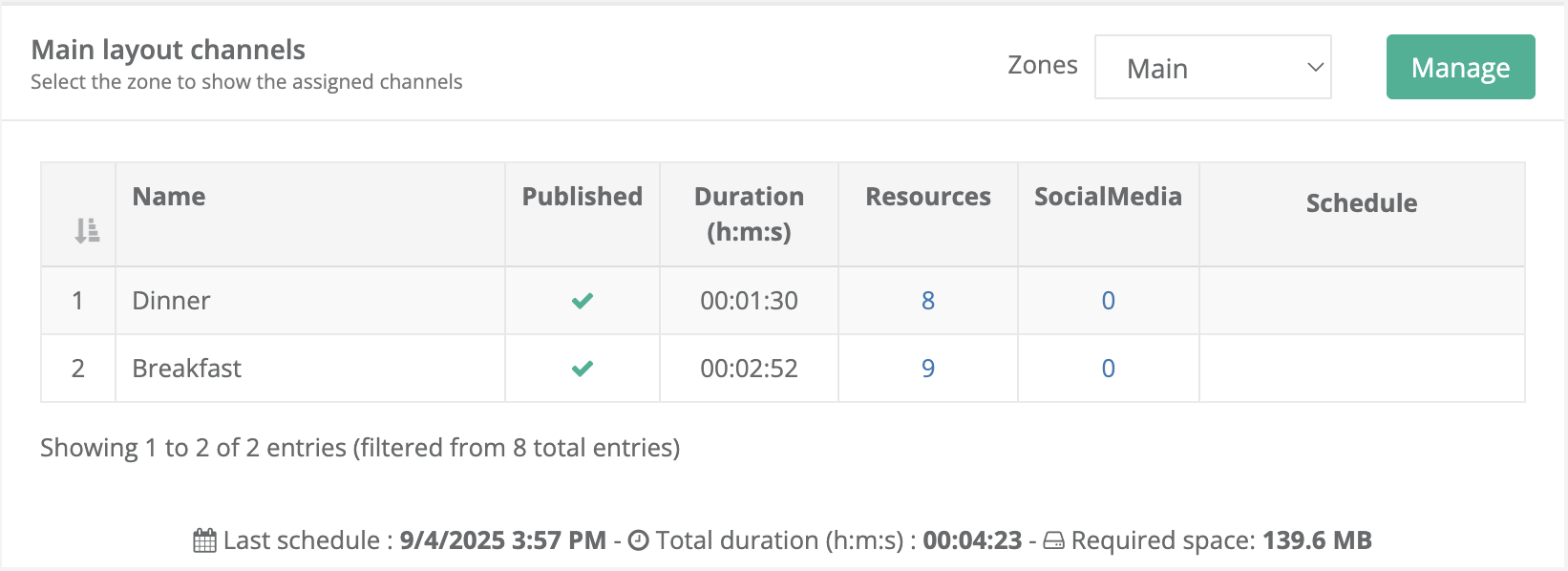

Player channels

At the bottom you’ll find the Main layout channels table, which lets you:

  • see the channels assigned to each zone (Main, Sidebar, etc.);
  • view information such as Name, Publication, Total duration, number of Assets, included SocialMedia, and scheduling;
  • use the Manage button to edit the channels of the selected zone.

Below the table, a summary shows:

  • Last scheduling: date and time of the latest schedule sent to the player
  • Total duration (h:m:s): overall duration of the scheduled contents
  • Required space: total space needed on the device

Channel Management​

Click Manage in the channel view section to access the screen dedicated to managing channels for each layout zone.

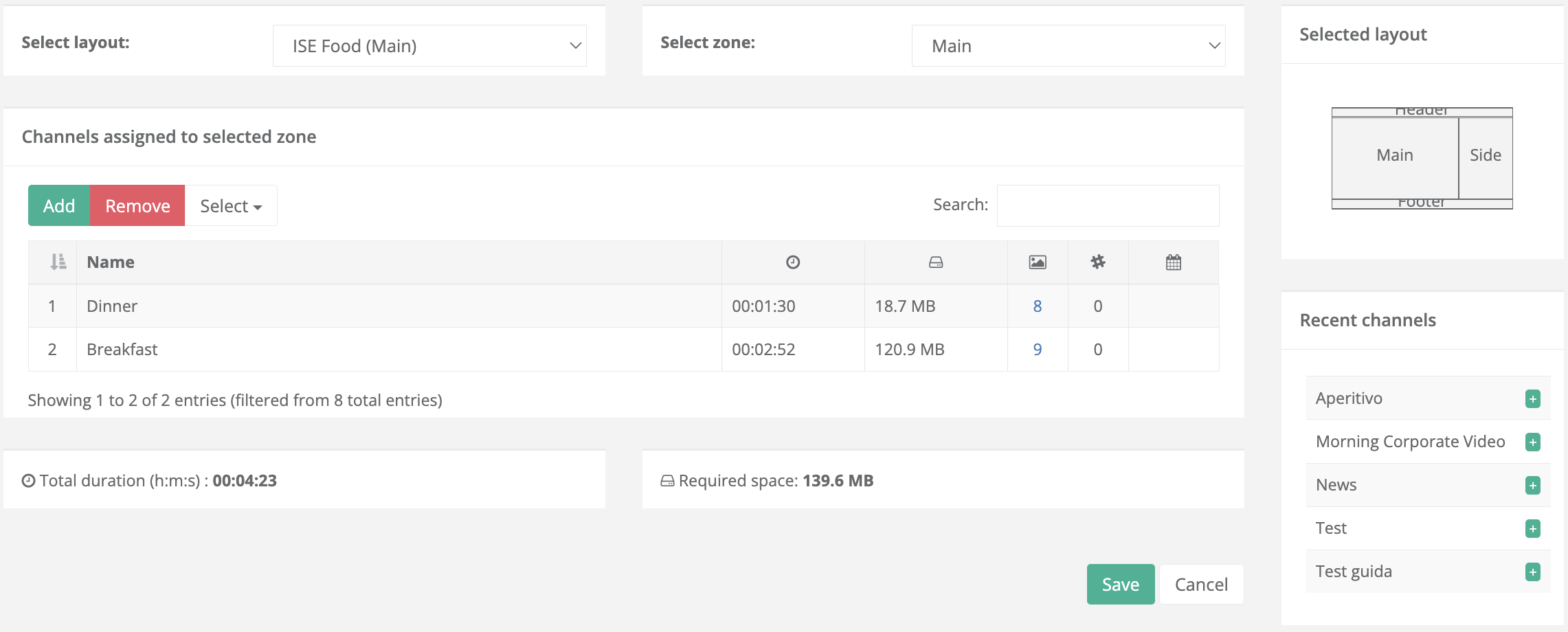

Player channel details

In this section you can:

  • Select the layout and the zone to work on.
  • Add or remove channels with the Add and Remove buttons.
  • Check the table of channels assigned to the zone, showing:
    • Channel Name
    • Total duration of the channel contents
    • Required space on the device
    • Number of media assets and social contents included
  • Recent channels → quick list on the right to assign channels you recently used.
  • Selected layout → graphical representation of the layout with available zones.
  • Final summary → at the bottom you’ll see the Total duration and Required space for the selected zone.

Questions?

For additional support, open a ticket.

Last updated: October 2025
